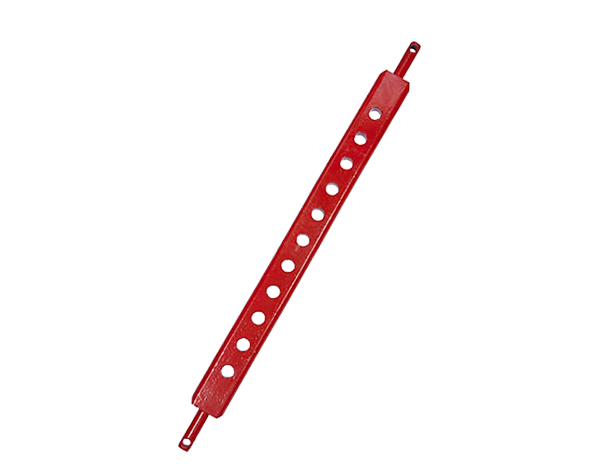

Draw Bar

DRAWBAR (CROSS SECTION - 63 X 25MM), DRAWBAR (CROSS SECTION 76 X 32MM)

RANGE	A	B	C	D	E	F	NO. OF HOLES
EXB01	774	57	75	51	22	19	11
EXB12	580	50	80	80	22	22	5

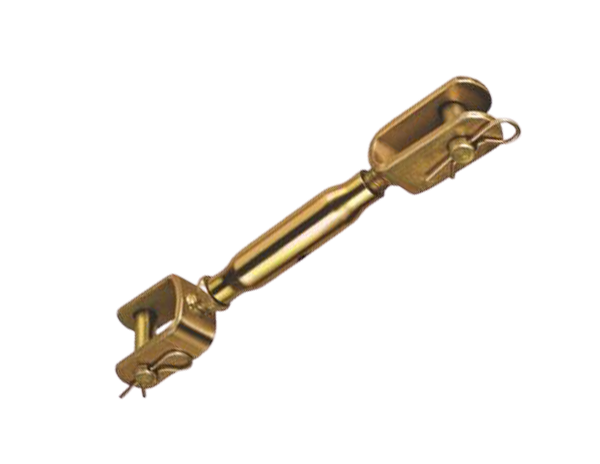

ADJUSTABLE LEVELLING ARM

RANGE	L (MIN)	L (MAX)	L1	D	d	H1	h1	d1	h2
EX1930	380	530	230	M24X3	18	24	72	19	44
EX1945	520	690	380	M24X3	16	24	72	22.1	35

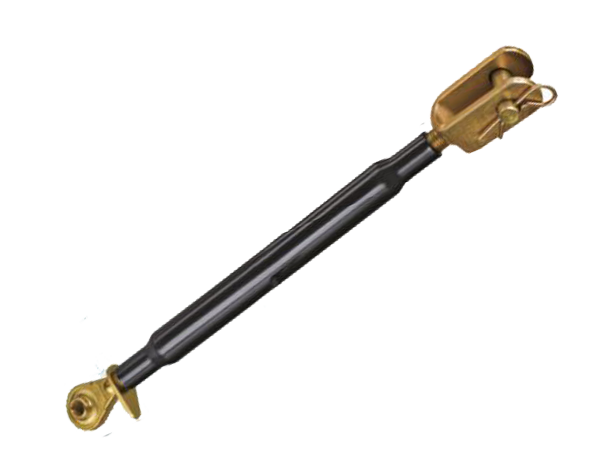

ADJUSTABLE LEVELLING ARM

RANGE	L (MIN)	L (MAX)	L1	D	d	H	h	H1	h1
EX1900	380	490	200	M22X2.5	18	30	60	24	72
EX450565	450	565	225	M30X3.5	16	40	85	26.5	90

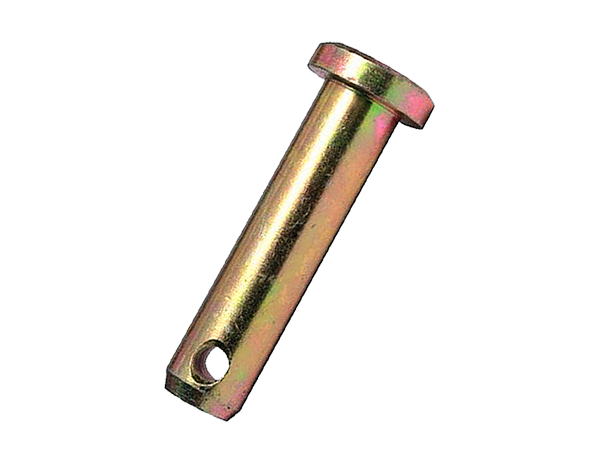

CLEVISE PINS (AVAILABLE IN GOLDEN FINISH & SILVER FINISH)

RANGE	A	B	C	D	E
EX/4-2.000	3/4"	0.934"	1.765"	2.000"	0.156"
EX-2-9.000	2"	2.375"	8.375"	9.000"	0.250"

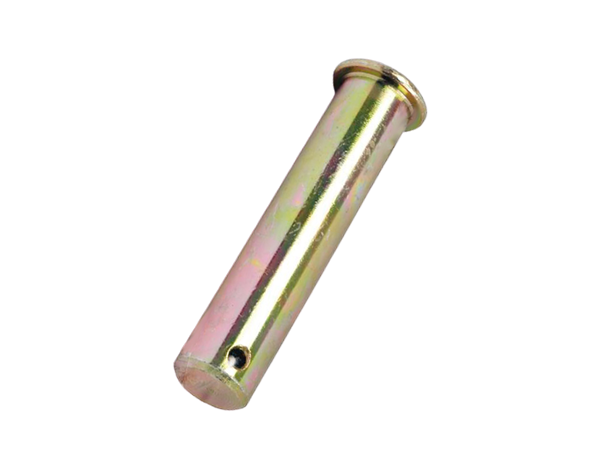

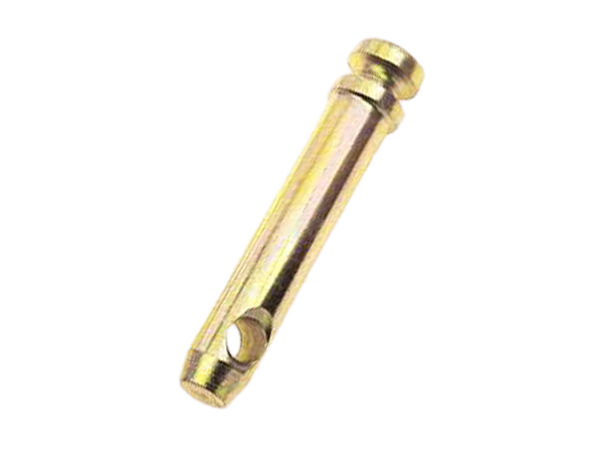

RANGE	A	B
EX 3/4-4.00	3/4"	4.0"
EX 1-1/8-4.50	1-1/8"	4.5"

Expert International

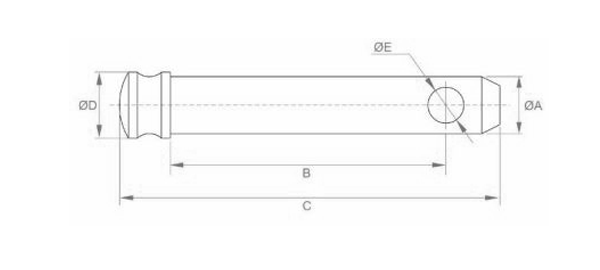

RANGE	A	B	C	D	E
EX 16076	15.9	76	113	19	7
EX 32136	32	136	175	38	12
